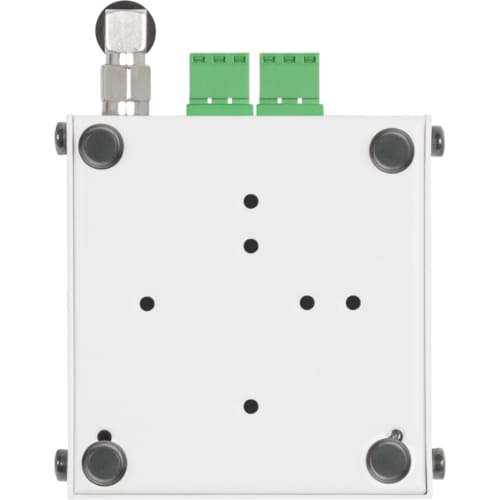

The SD-2xOut device features two digital outputs that can be easily controlled using the SensDesk portal.

For configuration, SD-2xOut features a built-in web server and WiFi connectivity. The device can be monitored remotely over the Internet using the free SensDesk portal and the SensDeskMobile app.

Using the SensDesk portal, the outputs can be controlled directly in the portal web interface. The outputs can be controlled either manually, or with a condition (local or remote). For details about controlling the outputs, see the application notes.

Features:

Wired Ethernet as well as WiFi - 802.11 b/g/n (2.4GHz)
Support for simultaneous Ethernet and WiFi operation (for easy setup)
5V or PoE power
Simple installation, supports DHCP
Embedded WEB server
Security protected with a password
Support for the SensDesk portal

Applications and usage:

Manual or automated control of appliances and customer’s equipment
Heating control (thermostat mode)
Pumping water into a tank if the level drops
Lighting up warning lights or sounding a warning horn

More information / flyer / user manual / firmware
